Universal Clip Chair
Universal clip chair frame support:
- Bag size 100 to 400 depending on height
- cover: 25 mm (1″) to 102 mm (4″)
- Rebar: 8 mm to 30 mm
Sturdy, versatile universal clip chair, the ideal support for stable, uniform reinforced concrete.
- Description

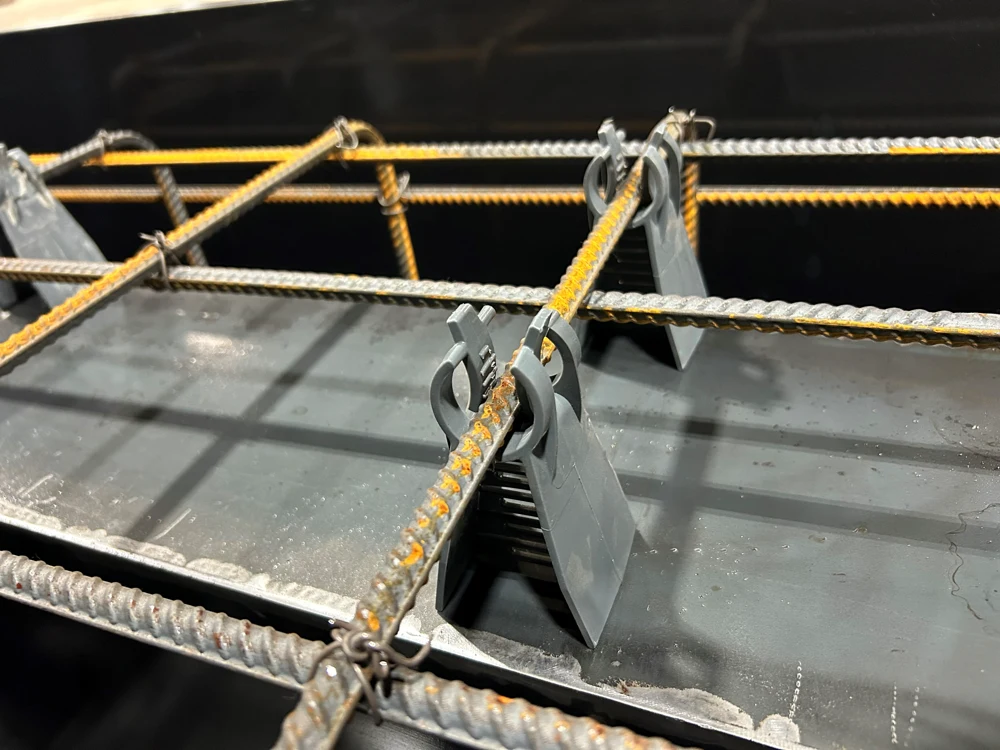

The Plasti-Tom universal clip chair is designed to support horizontal and vertical steel studs during heavy-duty work. Equipped with a unique, highly stable retaining system, they can accommodate rebar from 8 mm to 30 mm on a single chair. This flexibility means you can limit the number of models you need in your inventory. These chairs provide uniform coverage of vertical steel studs, making them ideal for foundation walls, elevator shafts and support beams. They are also ideal for supporting reinforcement during formwork work. Thanks to their unrivalled strength, they are also suitable for the manufacture of lamppost bases and precast concrete slabs. Their design allows optimum concrete flow, reducing the risk of voids or linear cracking.
- Table of available models
Product Lid Bar diameter Quantity per bag Quantity per pallet CH-100-U 1,0" (25 mm) 8 mm to 30 mm 400 12,000 pieces/pallet CH-125-U 1,25" (32 mm) 8 mm to 30 mm 400 12,000 pieces/pallet CH-150-U 1,5" (38 mm) 8 mm to 30 mm 300 9,000 pieces/pallet CH-200-U 2,0" (52 mm) 8 mm to 30 mm 250 7,500 pieces/pallet CH-250-U 2,5" (63 mm) 8 mm to 30 mm 200 6,000 pieces/pallet CH-300-U 3,0" (76 mm) 8 mm to 30 mm 150 4,500 pieces/pallet CH-350-U 3,5" (89 mm) 8 mm to 30 mm 125 3,750 pieces/pallet CH-400-U 4,0" (102 mm) 8 mm to 30 mm 100 3,000 pieces/pallet - Further information
Model CH-100-U (Cover 1.0" (25 mm) / bar Ø 8 mm to 30 mm), CH-125-U (Cover 1,25" (32 mm) / Ø bar 8 mm to 30 mm), CH-150-U (Cover 1,5" (38 mm) / Ø bar 8 mm to 30 mm), CH-200-U (Cover 2,0" (52 mm) / Ø bar 8 mm to 30 mm), CH-250-U (Cover 2,5" (63 mm) / Ø barr 8 mm to 30 mm), CH-300-U (Cover 3,0" (76 mm) / Ø bar 8 mm to 30 mm), CH-350-U (Cover 3,5" (89 mm) / Ø bar 8 mm to 30 mm), CH-400-U (Cover 4,0" (102 mm) / Ø bar 8 mm to 30 mm)
Delivery type Bag: 400 ft/bag, Pallet: 12,000 ft/pallet, Bag: 300 ft/bag, Pallet: 9,000 ft/pallet, Bag: 250 ft/bag, Pallet: 7,500 ft/pallet, Bag: 200 ft/bag, Pallet: 6,000 ft/pallet, Bag: 150 ft/bag, Pallet: 4,500 ft/pallet, Bag: 125 ft/bag, Pallet: 3,750 ft/pallet, Bag: 100 ft/bag, Pallet: 3,000 ft/pallet
Cover 1,0" (25 mm), 1,25" (32 mm), 1,5" (38 mm), 2,0" (52 mm), 2,5" (63 mm), 3,0" (76 mm), 3,5" (89 mm), 4,0" (102 mm)
Bar diameter 8 mm to 30 mm
