Lattice spacer

Accessories - Precast Concrete

The fast, precise and safe solution for positioning reinforcing mesh in small and medium-diameter concrete pipes and manholes.

Add to quote
  • Description

    A mesh spacer placed every 12 to 18 inches around the top and bottom of the reinforcing cage ensures the required spacing between the reinforcement and the formwork surface to achieve the desired concrete cover, while preventing the cage from moving during pipe fabrication.



  • Further information
    Quantity

    Bag of 1,000
    Capacité

    Mesh – 6 mm – 8 mm
    Cover

    25 mm (1”), 32 mm (1.25”), 38 mm (1.5”), 44 mm (1.75”), 50 mm (2”)
    Series

    ,

  • Opinion
Previous
Protective pads

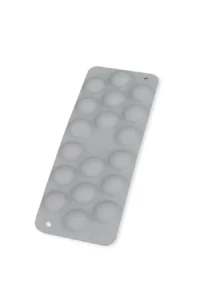

Moule en silicone gris à quinze cavités rondes
Next
Spacer hook
Gray plastic support with a modern design.

Table of available models

2000 serie – 2 in trellis (51 mm)

ProductCoverageBar diameterQuantity per bag
2125-W91.25" (32 mm)0.338" (8.6 mm)800
2125-W141.25" (32 mm)0.422" (10.72 mm)800
2125-W181.25" (32 mm)0.479" (12.17 mm)800
2140-W91.5" (40 mm)0.338" (8.6 mm)800
2140-W141.5" (40 mm)0.422" (10.72 mm)800
2140-W181.5" (40 mm)0.479" (12.17 mm)800
2150-W92" (50 mm)0.338" (8.6 mm)800
2150-W142" (50 mm)0.422" (10.72 mm)800
2150-W182" (50 mm)0.479" (12.17 mm)800

3000 serie – 3 in trellis (76 mm)

ProductCoverageBar diameterQuantity per bag
30750.75" (18 mm)6-8 mm600
31001" (25 mm)6-8 mm600
31251.25" (32 mm)6-8 mm600
31501.5" (40 mm)6-8 mm600
