Clip Chair

Category: Accessories - Precast Concrete

Reinforcement supports chair

Bags of 400 to 1000
Horrizontal rebar size up to 20 mm
Vertical rebar size : 10 mm

Description+

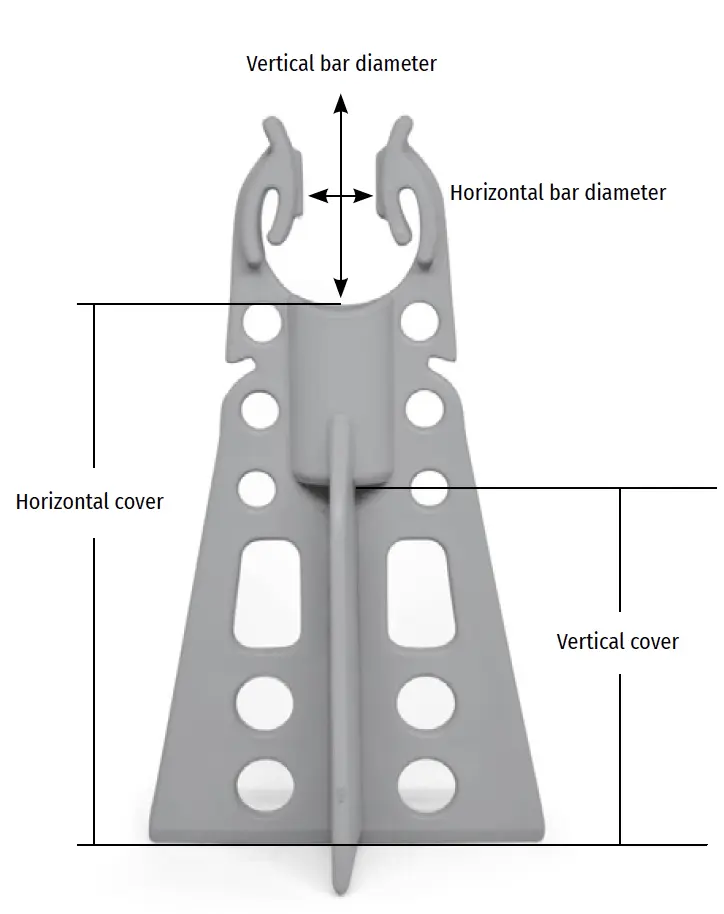

The clip chair is designed to support horizontal and vertical steel uprights by the end caps during heavy-duty work. All chair sizes can accommodate up to 20 mm reinforcement on the same chair horizontally, and 10 mm reinforcement vertically. Their flexibility means you can reduce your inventory. The clip chair is designed with a very stable retaining system, while allowing the free flow of concrete.

Allows cover of 1.5 to 3.5 inches in 0.5-inch increments horizontally
0.5 to 2.5 inch vertical cover in 0.5 inch increments

See pages 8 to 12 of our printable catalogue for more details.

Additional information+

Horrizontal rebar size	15 to 20 mm
Vertical rebar size	10 mm
Cover(s)	13 mm (0.5"), 25 mm (1"), 38 mm (1.5"), 50 mm (2"), 63.5 mm (2.5"), 76 mm (3"), 89 mm (3.5")
Height(s)	25 mm (1"), 38 mm (1.5"), 51 mm (2"), 63.5 mm (2.5"), 76 mm (3"), 89 mm (3.5")

See all products

List of available products:

Product	Horizontal coverage	Vertical coverage	Bar diameter Horizontal	Vertical bar diameter	Quantity per bag
15X05 CL20	1.5" (28 mm)	0.5" (13 mm)	up to 20 mm	10 mm	1 000
20X10 CL20	2" (50 mm)	1" (25 mm)	up to 20 mm	10 mm	500
25X15 CL20	2.5 in (62.5 mm)	1.5" (28 mm)	up to 20 mm	10 mm	500
30X20 CL20	3" (75 mm)	2" (50 mm)	up to 20 mm	10 mm	400
35X25 CL20	3.5 in (87.5 mm)	2.5 in (62.5 mm)	15-20 mm	10 mm	400
